CPU Core & Socket Configuration In VMware: A Guide
Does the configuration of CPU cores and sockets within a virtual machine truly impact application performance, or is it merely a matter of perception? The answer, as we shall see, is that the relationship between CPU cores, sockets, and threads in a virtual environment is a complex dance, one that can significantly affect application performance if not managed carefully.
Delving into the intricacies of CPU architecture is essential for anyone involved in the management of virtual machines. The terms "CPU," "core," and "socket" are often used interchangeably, but a clear understanding of their distinctions is paramount. A "chip" or "CPU chip" refers to the actual integrated circuit (IC) that resides on a computer. A CPU socket, in contrast, is the physical connector on a motherboard that houses a single physical CPU package.
| Category | Details |
|---|---|
| Core Concepts |
|
| Important Terms and Metrics |
|
| Reference Link | Intel Core i9 Processor (Official Intel Website) |
Consider a server, for example, that has 8 CPUs, each with 1 core per socket, and 8 sockets. In a contrasting scenario, a server might have 4 CPUs with 1 core per socket and 4 sockets. These seemingly minor differences in hardware specifications can significantly impact the performance and resource allocation within a virtualized environment.

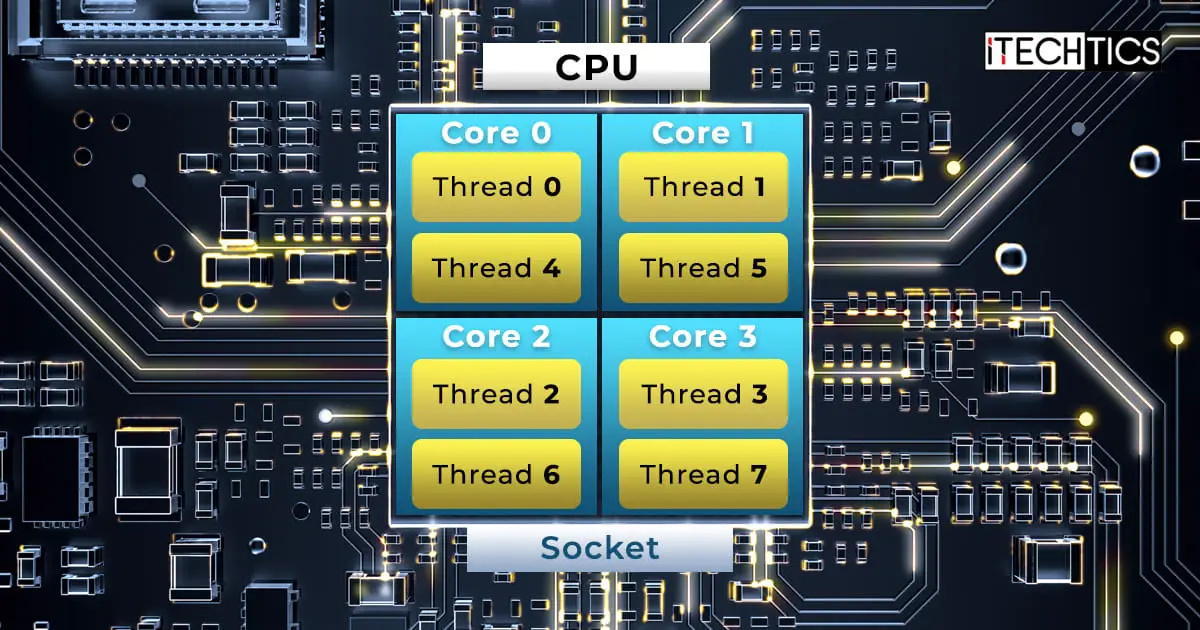

The fundamental building block is the physical CPU package, which occupies a socket on the motherboard. Within each socket resides a specific number of physical cores, and each of these cores possesses the capability to execute one or more threads. These threads, in turn, represent the units of execution the operating system schedules.
When configuring virtual machines (VMs) within a platform like VMware, understanding CPU topology is crucial. The virtual CPUs (vCPUs) assigned to a VM are configured in terms of "cores" and "cores per socket." For example, a VM could be set up with 2 sockets and 4 cores per socket (2P x 4C), which translates to a total of 8 vCPUs. This configuration has direct implications on the virtual machine's access to the underlying physical hardware resources. The total number of sockets allocated to a VM is also critical. Note the standard edition of VMware vSphere often imposes limits on the number of CPU resources that can be utilized. It is not uncommon to find these limits, as you might discover, restricting access to a certain number of sockets.
The concept of hyperthreading, or Simultaneous Multi-Threading (SMT), further complicates matters. A host equipped with a dual Intel Xeon x5650 2.66 GHz CPU, each having 6 cores, will have 12 total cores in the physical host. However, VMware may see 24 CPUs or 24 cores total, because of hyperthreading. This means each core can handle two threads simultaneously, effectively doubling the perceived number of processing units.
When running commands such as `htop`, users do not see physical CPUs, but rather the threads that are available for use. The equation for calculating CPUs is: Cpus = Threads per core x Cores per socket x Sockets. For instance, if we have a system with one socket, four cores per socket, and two threads per core, then we have 1 4 2 = 8 CPUs that the operating system will see.
In the VMware environment, the "CPU topology" section within the VM options tab provides controls to fine-tune CPU allocation. It's generally advised to ensure the "Cores per socket" setting is configured to "assigned on power on," which is the default. Equivalent settings are also accessible within the VM configuration (.vmx) file. This allows administrators to control the way in which vCPUs are assigned and how they map to the underlying physical hardware.
Furthermore, the relationship between sockets and Non-Uniform Memory Access (NUMA) is a critical factor. Since vSphere 6.5, modifying the "cores per socket" value no longer significantly influences vNUMA or the overall configuration of the NUMA architecture. To optimize performance, one approach is to "mimic your physical NUMA topology." For example, when configuring a virtual machine with 20 vCPUs, configure the VM with two sockets and 10 cores per socket. Alternatively, one can leave the "cores per socket" setting at 1, allowing the hypervisor (ESXi) to automatically choose the best NUMA configuration for optimal performance.
When assessing the total number of cores in a given node, a conservative approach is recommended. Instead of counting the absolute total, consider counting slightly fewer cores. This practice helps prevent over-subscription of resources and potential performance degradation.
Now, let's revisit the initial question: Does it really matter? Does it make any difference for the performance of the applications running in a virtual machine if the operating system perceives it to have 4 sockets and 2 cores per socket, versus 1 socket with 8 cores? The answer is yes, it often does. It can influence how the operating system and the applications within the VM interact with the available physical resources. If an application is designed to leverage multiple cores, then configuring more sockets and fewer cores per socket can provide benefits for performance if the underlying hardware supports it, and vNUMA is also being leveraged correctly.
The choice of CPU configuration depends on a multitude of factors, including the specific workload, the applications being run, and the underlying physical hardware. A CPU socket represents a physical port on the motherboard for the CPU. Therefore, the number of physical sockets is important, but the configuration within the VM, specifically the numbers of cores per socket, is often of more significance, especially for performance tuning.
The CPU, or processor, is the critical component of a computer system responsible for executing the tasks required for applications to run. The CPU performs computer functions. Its the element that translates instructions, performs calculations, and makes decisions.
A common example of the configuration might look like this: 16 sockets by 1 core per socket, 2 sockets by 8 cores per socket, 1 socket by 16 cores per socket, 8 sockets by 2 core per socket, or 4 sockets by 4 core per socket. Remember, the objective is to optimize performance by matching the virtual CPU configuration with the physical hardware and the application's needs.
Moreover, consider the limitations imposed by software licenses. The standard edition of many software platforms might restrict the number of CPU sockets that can be utilized. For example, a standard VMware vSphere license could be restricted to only 4 CPU sockets. Therefore, the architectural design for VMs must adhere to these licensing constraints.
When creating a new virtual machine, the number of vCPUs assigned is divided by the cores per socket value (the default is 1 unless changed) to give the total number of sockets. It's crucial to be mindful of this relationship. To further clarify, if a VM is configured with 2 sockets and 4 cores per socket, the result is 8 vCPUs (2P x 4C = 8 vCPUs). This configuration affects how the virtual machine accesses the underlying physical resources.
It is often wise to align your virtual machine's CPU configuration to match or to not exceed the physical NUMA topology of your hosts. If a host has two NUMA nodes, you should limit the VM's CPU configuration to not exceed the resources of a single NUMA node, or to span across two nodes at most. Over-provisioning the number of vCPUs in a VM (assigning more vCPUs than are available) can also lead to performance degradation because the hypervisor must schedule and manage the workload across a limited number of physical CPU cores. Consider, too, that VMware vSphere has the concept of CPU Ready which provides a way to see if the VM is waiting for CPU resources.
The CPU components, including the ALU (Arithmetic Logic Unit), FPU (Floating Point Unit), registers, control unit, and cache, work in concert to form the core of the CPU. The number of physical cores per socket is the critical factor and is essential in understanding the underlying hardware's capabilities. The threads per core, on the other hand, determines the ability to handle multiple tasks simultaneously. Hyperthreading allows the execution of multiple threads on a single core, thus increasing the efficiency of the CPU.
Consider these configurations: One host with 8 CPUs and 1 core per socket, versus another with 4 CPUs and 1 core per socket. This impacts the overall design, cost, performance, and manageability of the environment. Proper CPU configuration within your VMs is thus critical for overall performance.
CPU sockets come in different types, but two common types are Pin Grid Array (PGA) and Land Grid Array (LGA). The PGA sockets have pins mounted on the processor, fitting into holes on the motherboard, while LGA sockets have pads on the processor that make contact with pins on the motherboard. In choosing how many vCPUs to allocate to your VMs, the physical hardware, the specific software, and any licensing restrictions that are in place should all be taken into account. Careful planning, monitoring, and ongoing tuning are all important steps in ensuring optimal virtual machine performance.

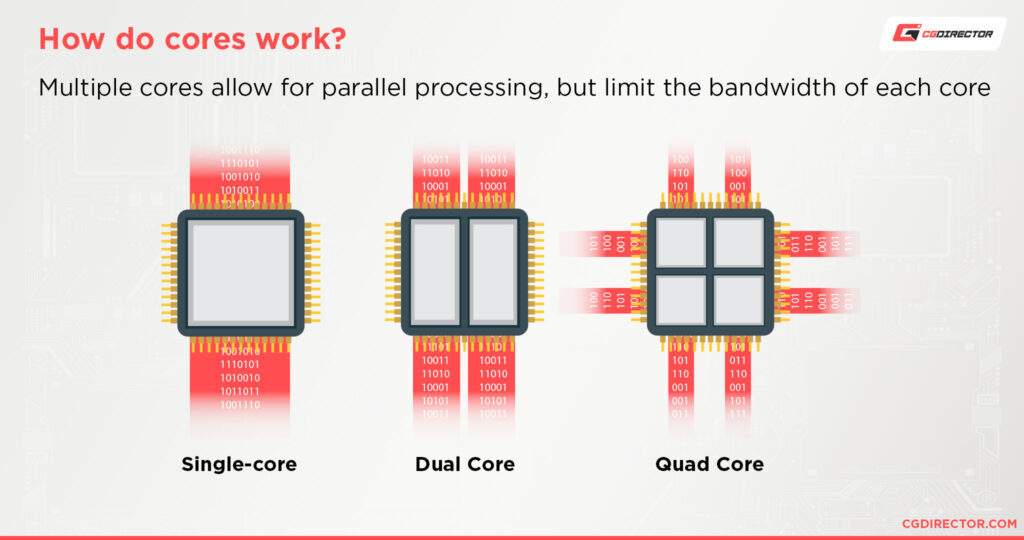

![How Many CPU Cores Do I need? [Workloads Explored]](https://www.cgdirector.com/wp-content/uploads/media/2022/06/How-do-cores-work-1024x540.jpg)
